Specification
| Model No. | P2.9 | P3.9 | P4.8 | P6.2 | P7.8 | P10.4 | ||||
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.42mm | ||||
| Panel Resolution | 168×336pixel | 256×256pixel | 208×208pixel | 160×160pixel | 128×128pixel | 96×96pixel | ||||
| Cabinet Size(mm) | 1000×1000×85mm | 1000×1000×84.5mm | ||||||||
| Cabinet Weight(kg/cabinet) | 16kg | 25kg | ||||||||
| Panel Material | Aluminum Profile | |||||||||
| IP Rating | IP66 | |||||||||
| Visual Angle(H/V) | H:140°/ V:120° | |||||||||
| Refresh Rate | 3840Hz | 3840/7680Hz | ||||||||
| MAX.Power Consumption | 550W/㎡ | 550W/㎡ | ||||||||
| Ave.Power Consumption | 168W/㎡ | 186W/㎡ | ||||||||
| Maintenance Method | Front/Rear | |||||||||
feature

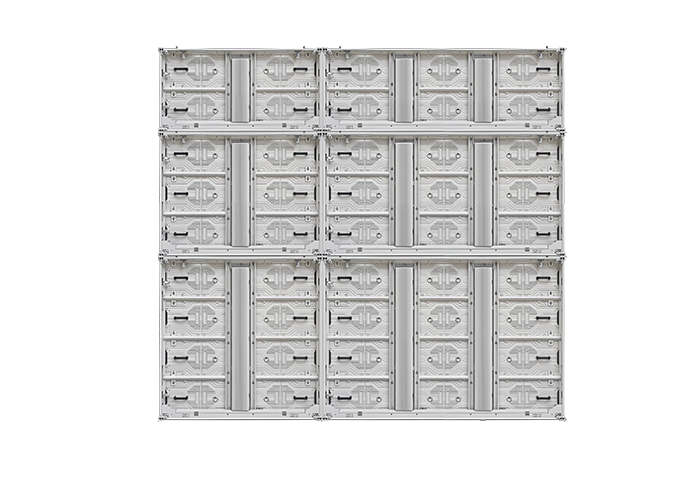

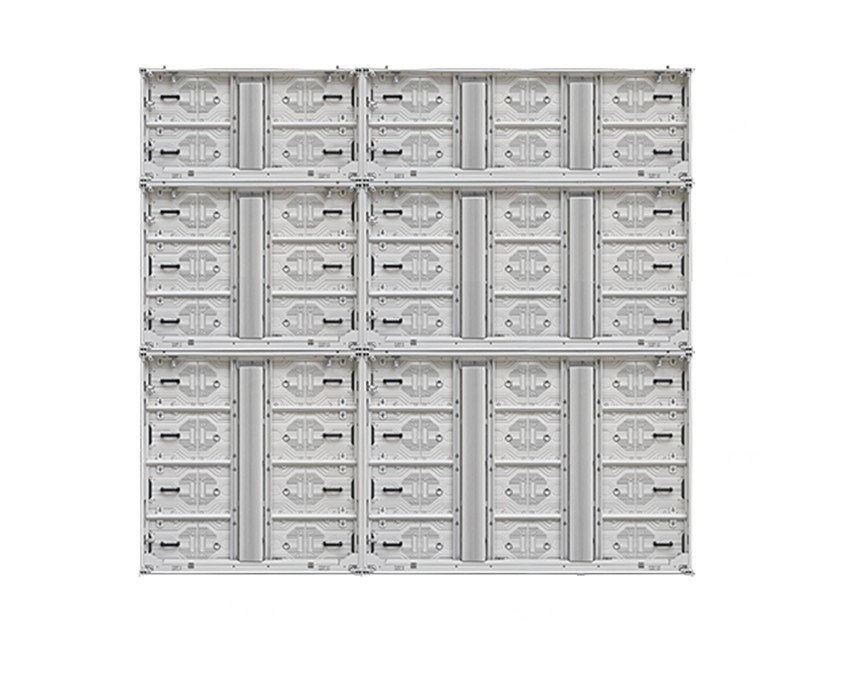

Custom Size
1000*500mm/1500*500mm/750*1000mm/750*1500mm/1000*1000mm/1500*1000mm

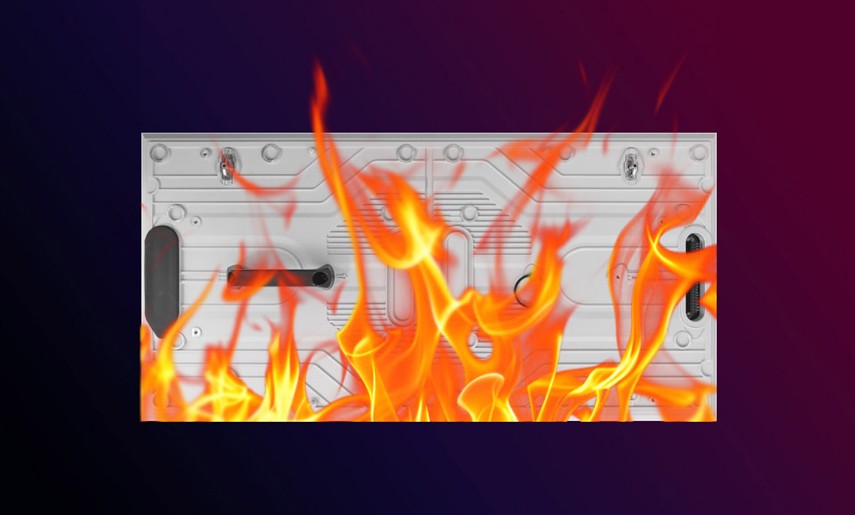

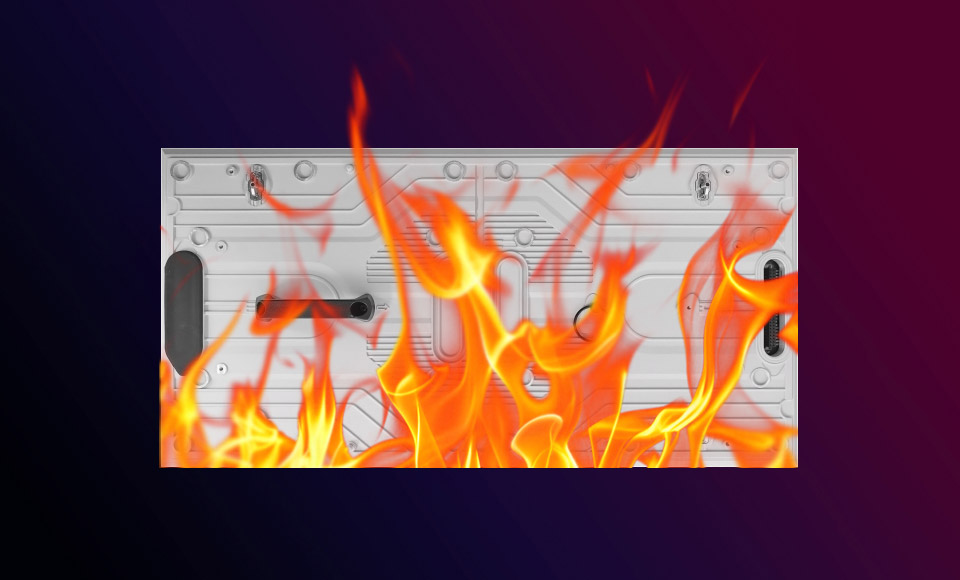

The module adopts all aluminum die-casting, which is fireproof and flame-retardant.
High grayscale, high contrast ratio and Large viewing angle, delicate picture quality, vivid display performance。

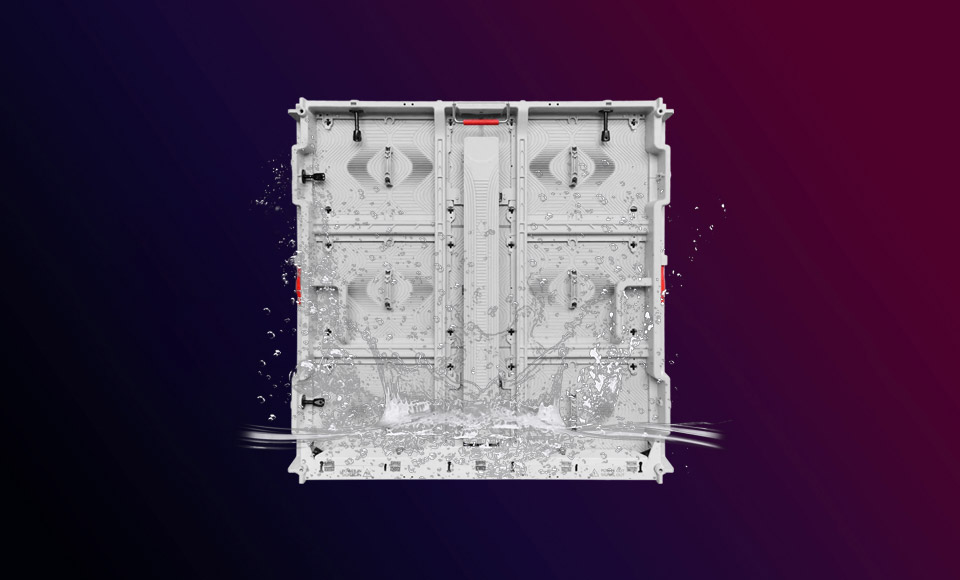

With IP66 protection on both front and rear sides, the cabinet is fully sealed and resistant to dust, rain, and snow. It supports direct outdoor exposure without additional enclosure, ensuring reliable performance in harsh weather conditions.

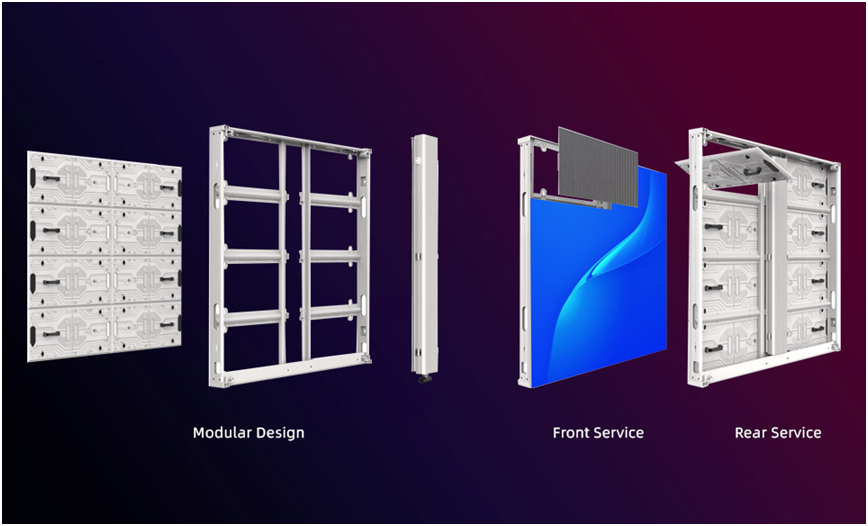

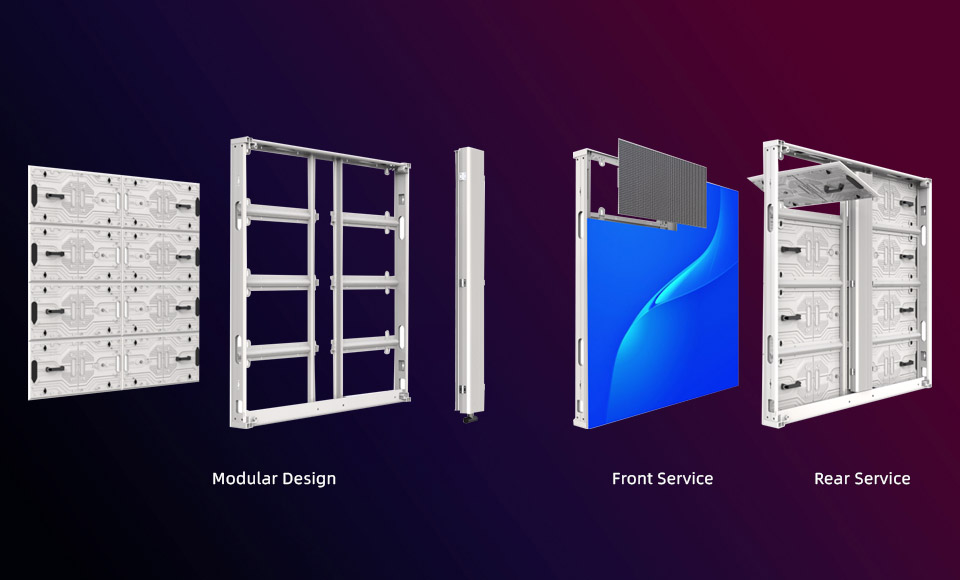

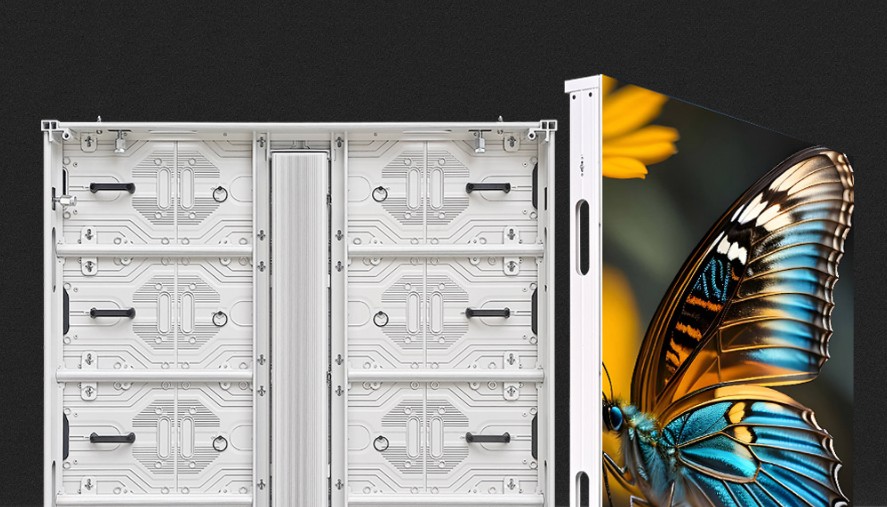

It supports front-rear service. Module adopts fast lock to have more convenient installation and dismantlement.
