specification
| Type | Outdoor | |
| Pixel Pitch | 3.91 | |
| Pixel Density | 65536 Pixel/sqm | |
| Pixel Configuration | SMD1415 | |

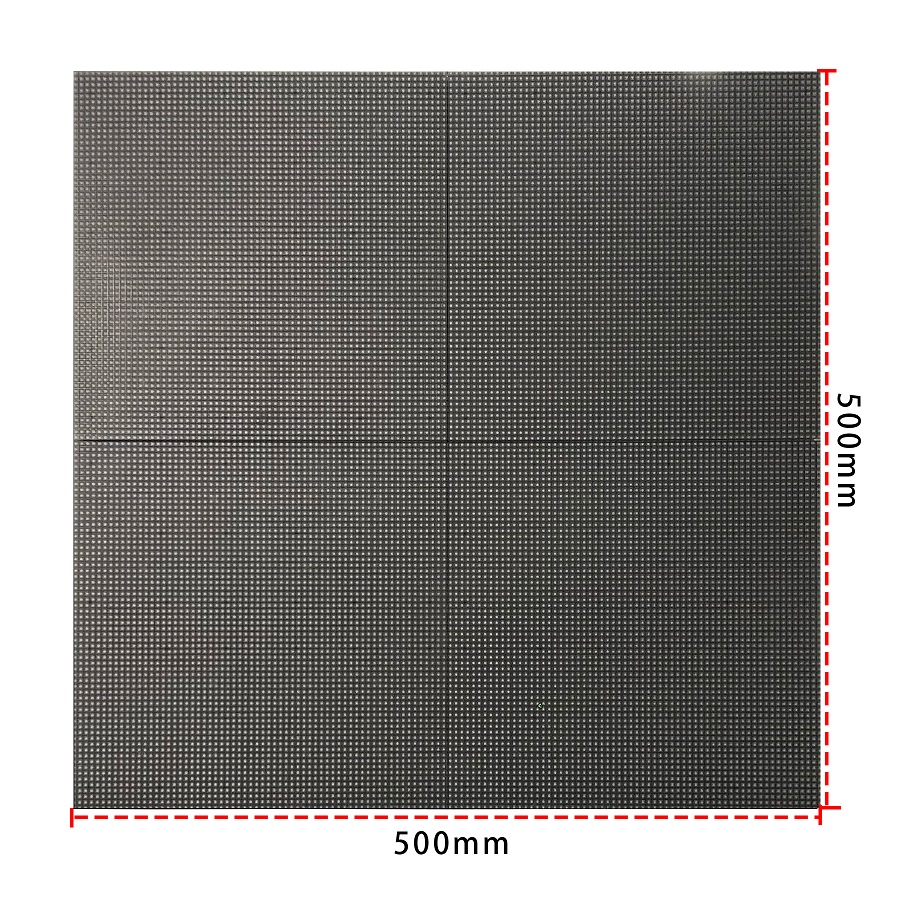

| Module Size(mm) | 250*250mm | |
| Module Resolution | 64*64dots | |

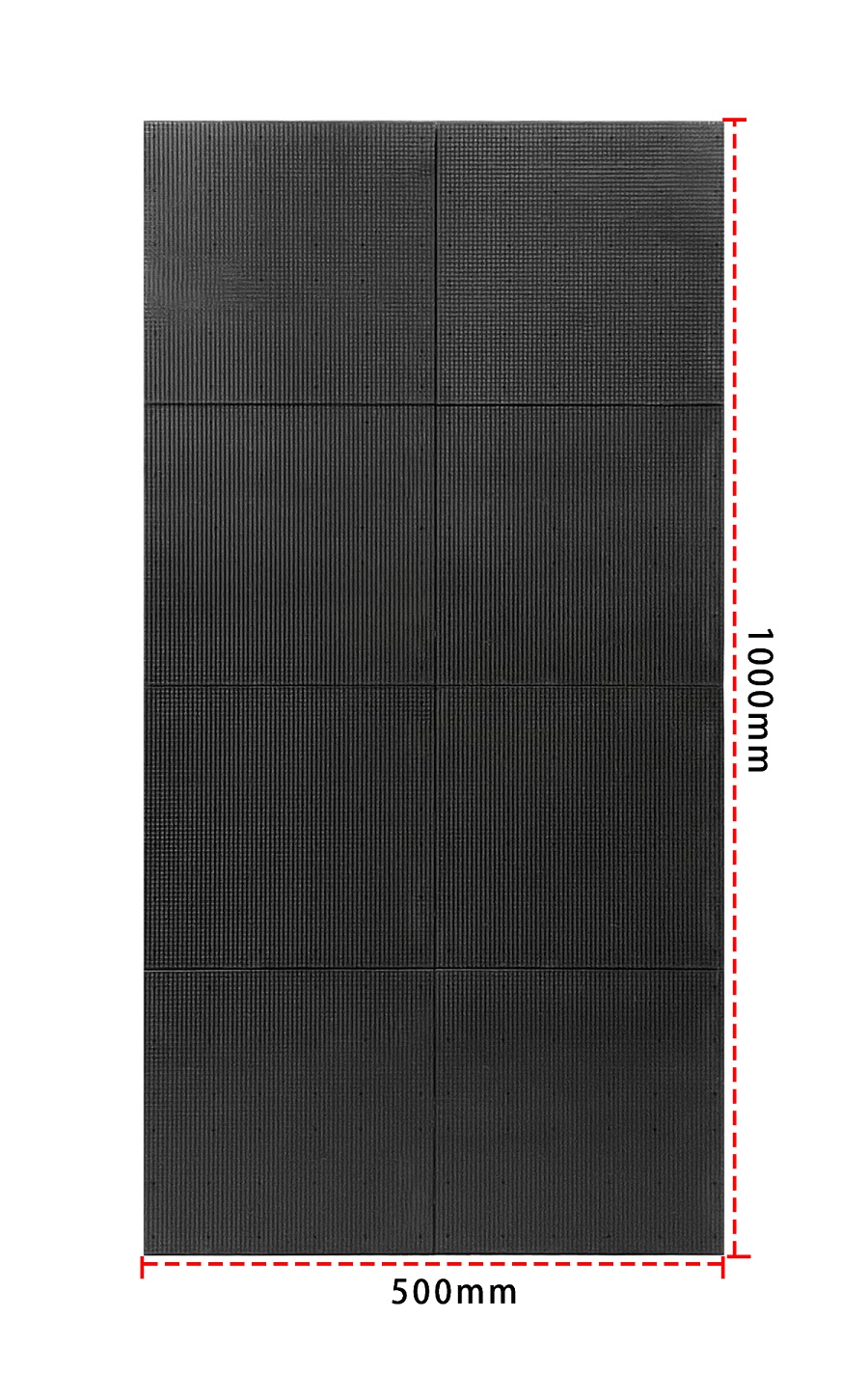

| Cabinet Size(mm) | 500*500mm/500*1000mm | |
| Cabinet Resolution | 128*128dots/128*256 | |
| Total QTY Module Per Cabinet | 2*2/ 2*4 | |
| Cabinet Weight | 23kg/48kg | |
| Cabinet Materia | Iron | |
| Input Voltage | 100-240 AC, 50/60HZ | |
| Max Power Consumption | 500w/sqm | |
| Avg. Power Consumption | 310w/sqm | |
| Brightness | Outdoor: 4500cd/sqm | |
| Brightness Uniformity | Luminance Discrepancy<5% | |
| Best Viewing Angle | Horizontal: 140° | |
| Temperature Range | Working: -20℃~60℃ | |
| Operating Humidity | 10%-90% | |
| Ingression Protection Grade | IP65 | |
| Pressure | 2t/sqm | |
| Scaning Mode | 1/16scan | |
| Refresh Frequency | > 3840Z, Adjustable | |
| Signal Input | DVI, Composite Video For Live Video | |
| Supported Networking | Through LAN/WAN, RS 232/RS 485 | |

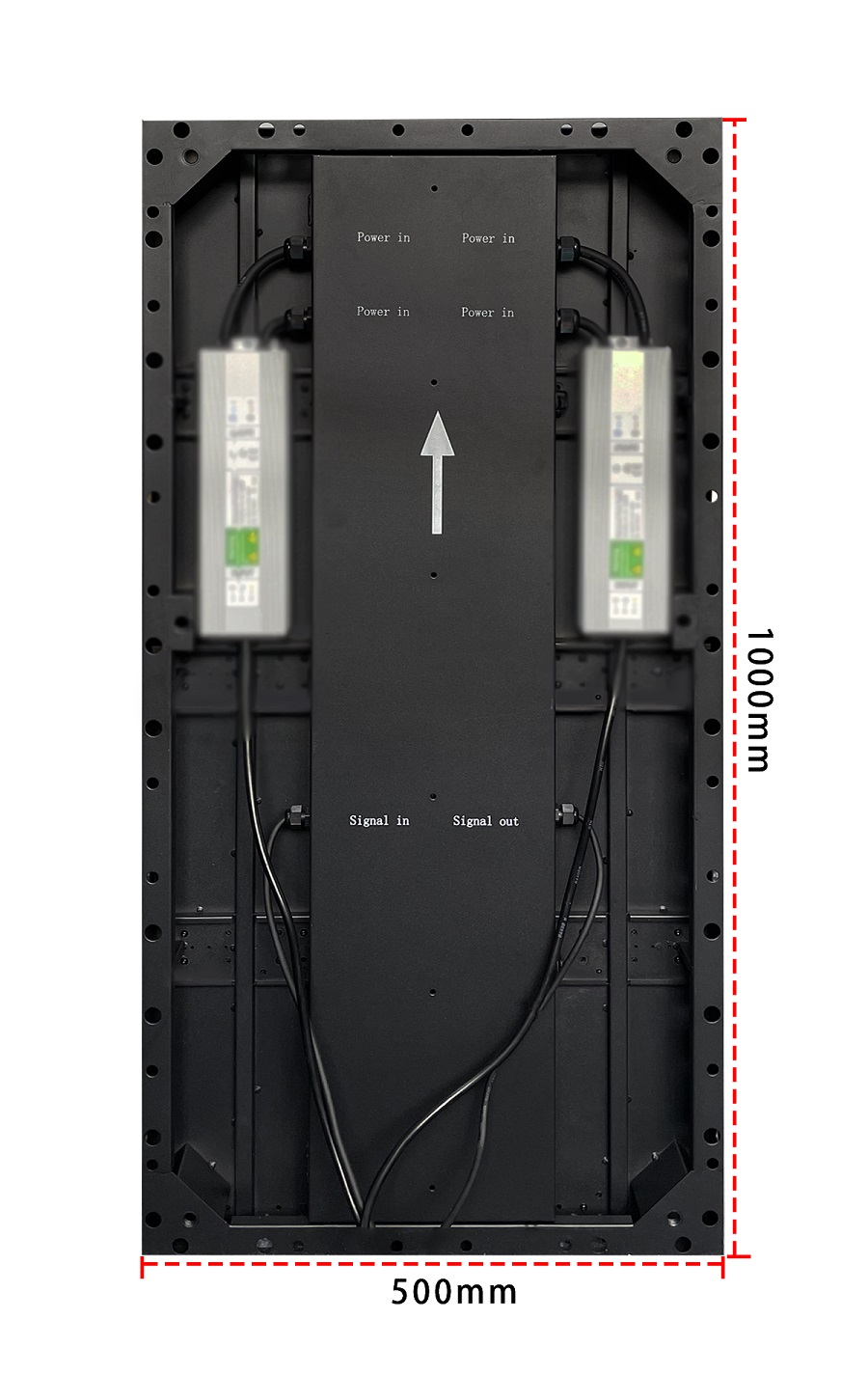

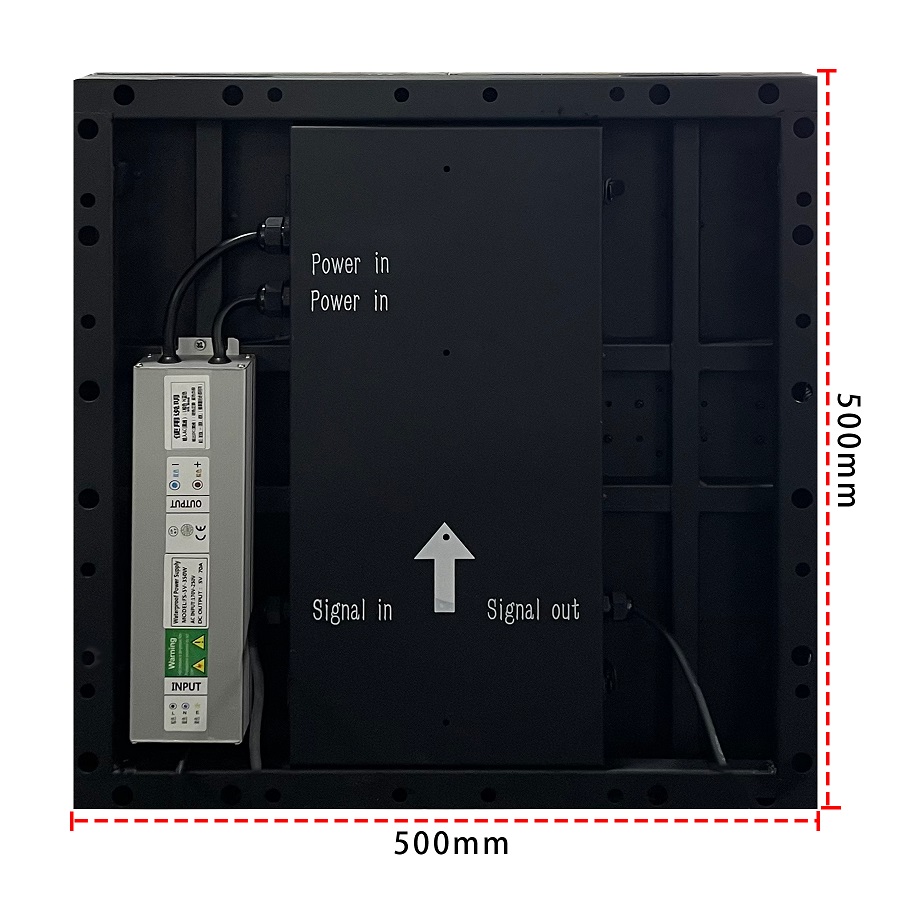

External Power Supply
Easy maintenance & better heat dissipation
Fully Sealed Cabinet
Reliable protection for outdoor environments
No Air Conditioning Required
Efficient thermal management without extra cooling
5,000 Nits Brightness
Clear visibility even under direct sunlight
Outdoor-Ready Design
Built for demanding outdoor applications
