Specification
| ltem | P3.91 | P4.81 | P2.976 | |
| Module | Panel Dimension | 250mm(W)* 250mm(H) | 250mm(W)” 250mm(H) | 250mm(W)* 250mm(H) |
| Pixel pitch | 3.91mm | 4.81mm | 2.976mm | |
| Pixel Density | 65536 dot/㎡ | 43264 dot/㎡ | 112896 dot/㎡ | |
| Pixel configuralion | 1R1G1B | 1R1G1B | 1R1G1B | |
| LED specification | SMD1921 | SMD1921 | SMD1921 | |
| Pixel resolution | 64 dot* 64 dot | 52 dot* 52 dot | 84 dot* 84 dot | |
| Average power | 35W | 35W | 35W | |
| Panel weight | 0.55KG | 0.47KG | 0.5KG | |

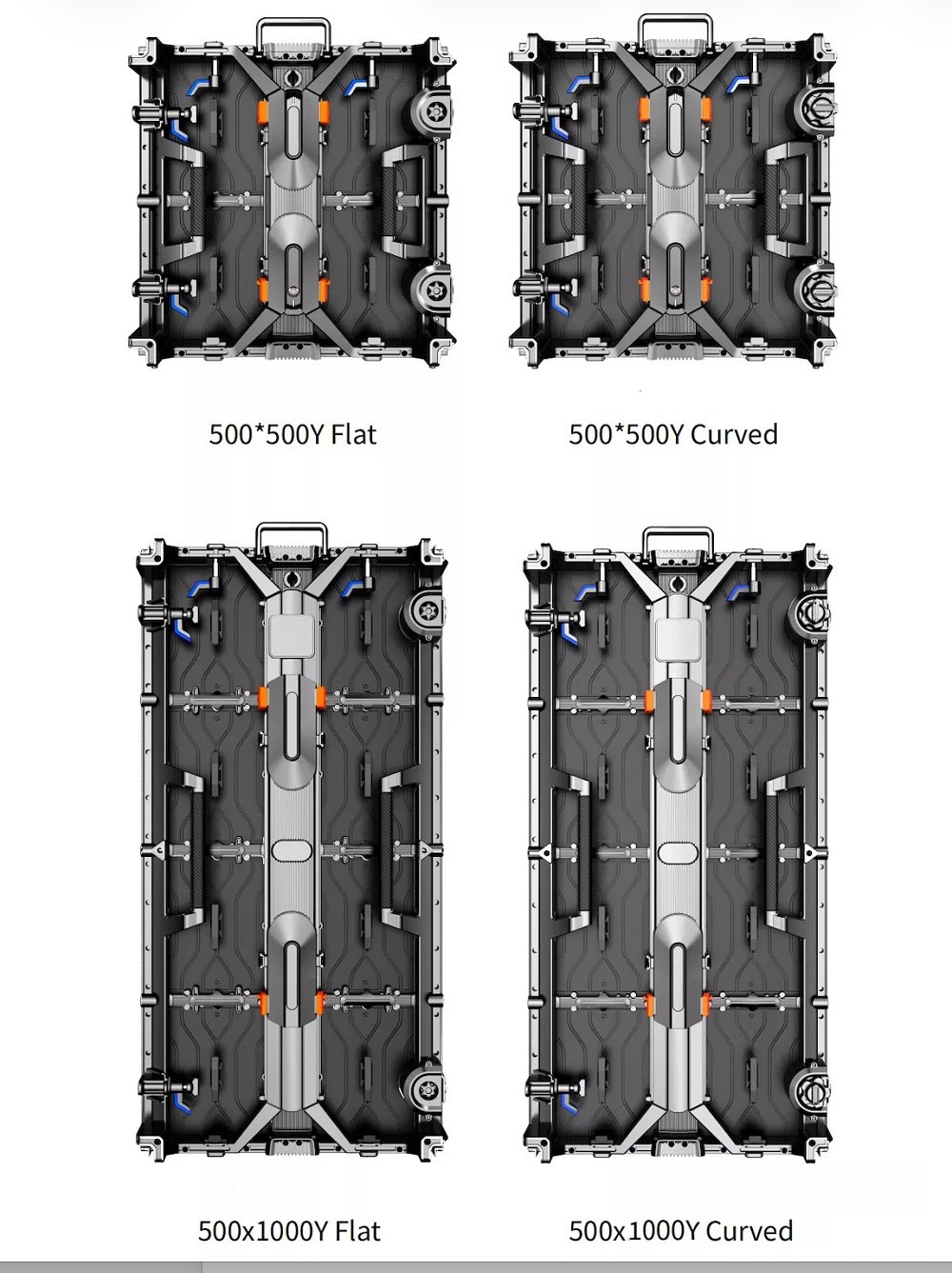

| Cabinet | Cabinet size | 500*1000mm*85mm, 500*500*85mm | 500*1000mm*85mm, 500*500*85mm | 500500*85m,500*1000*85mm |
| Cabinet Resolution | 128 dot” 256 dot, 128* 128 dot | 104 dot” 208 dot, 104 dot* 104 dot | 168*168 dot，168*336mm | |
| Quantity of panel | 8pcs, 4pcs | 8pcs, 4pcs | 4pcs | |
| HUB connecting | HUB75-E | HUB75-E | 26P | |
| Best viewing angle | 170/120 | 170/120 | 140/120 | |
| Best vewing distance | 3-30M | 4-40M | 3-30M | |
| Operating temperature | -10C*~45C” | -10C*~45C” | -10C”~45C” | |
| Screen power supply | AC110V220V- 5V40A | AC110V220V.5V40A | AC110V220V 5V40A | |
| Max power | 800 W/㎡ | 800 W/㎡ | 800 W/㎡ | |
| Average power | 400 W/㎡ | 400 W/㎡ | 400 W/㎡ | |
| Technical Signal Index | Scan Rate | 1/16S | 1/13S | 128S |
| Refresh frequency | 7680 HZS | 7680 HZS | 7680 HZS | |
| Display color | 4096*4096*4096 | 4096* 4096″4096 | 4096* 4096*4096 | |
| Brightness | 4500-6000 cd/㎡ | 4500-6000 cd/㎡ | 4500-6000 cd/㎡ | |
| Life span | 100000Hours | 100000Hours | 100000Hours | |
| Control distance | <100M | ＜100M | <100M | |
| Operating Humidity | 10-90% | 10-90% | 10-90% | |
| IP protection rating | IP65 | IP65 | IP65 | |

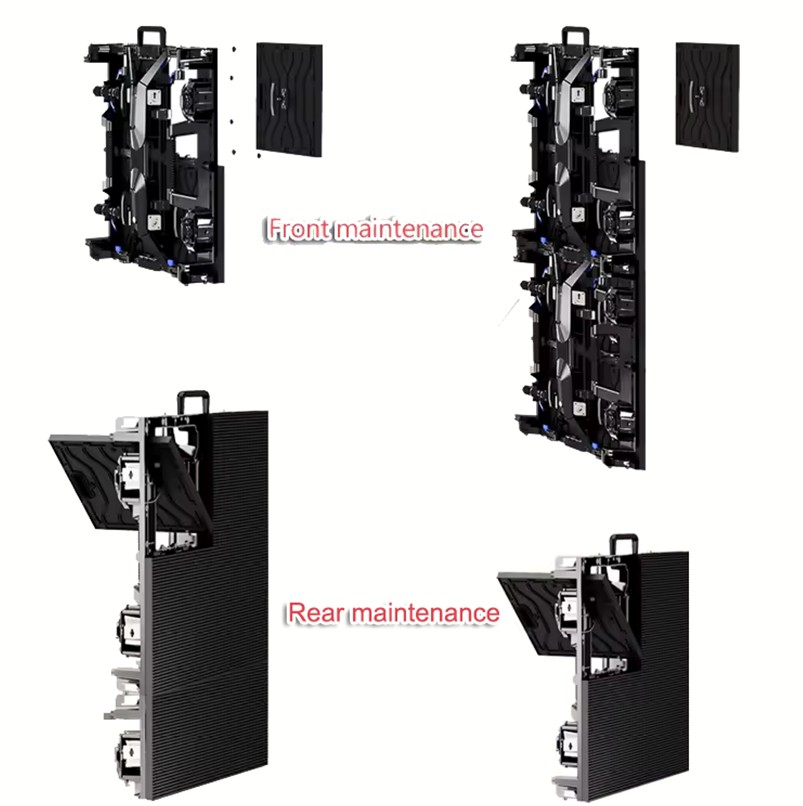

Easy to install and remove, Ensure installation quick

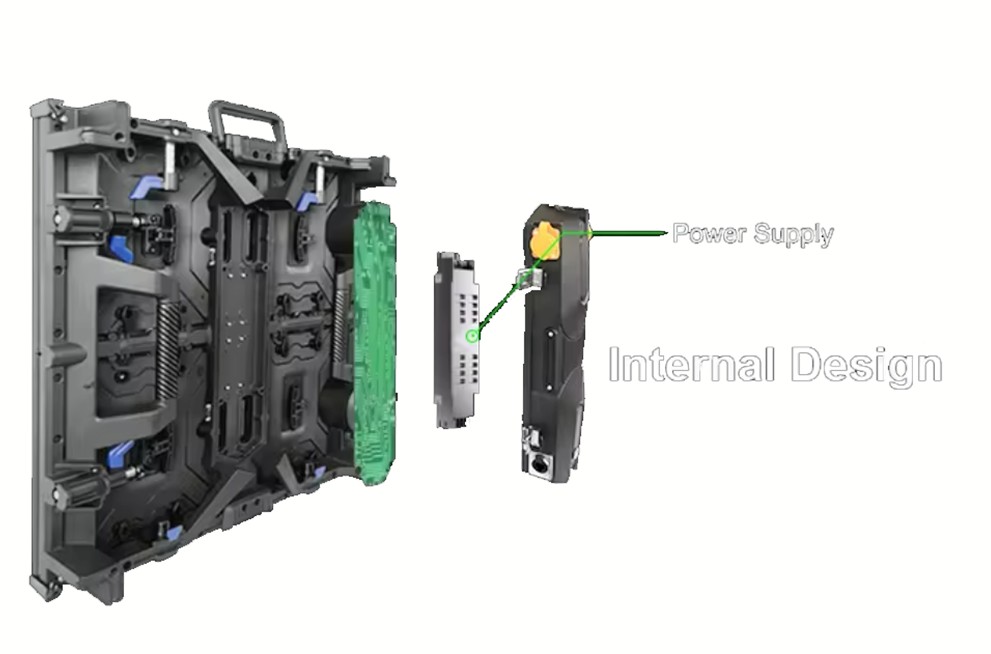

The LED display panel has a separate power supply box and the LED modules are connected to the HUB card without cables, making it easier to assemble and maintain.

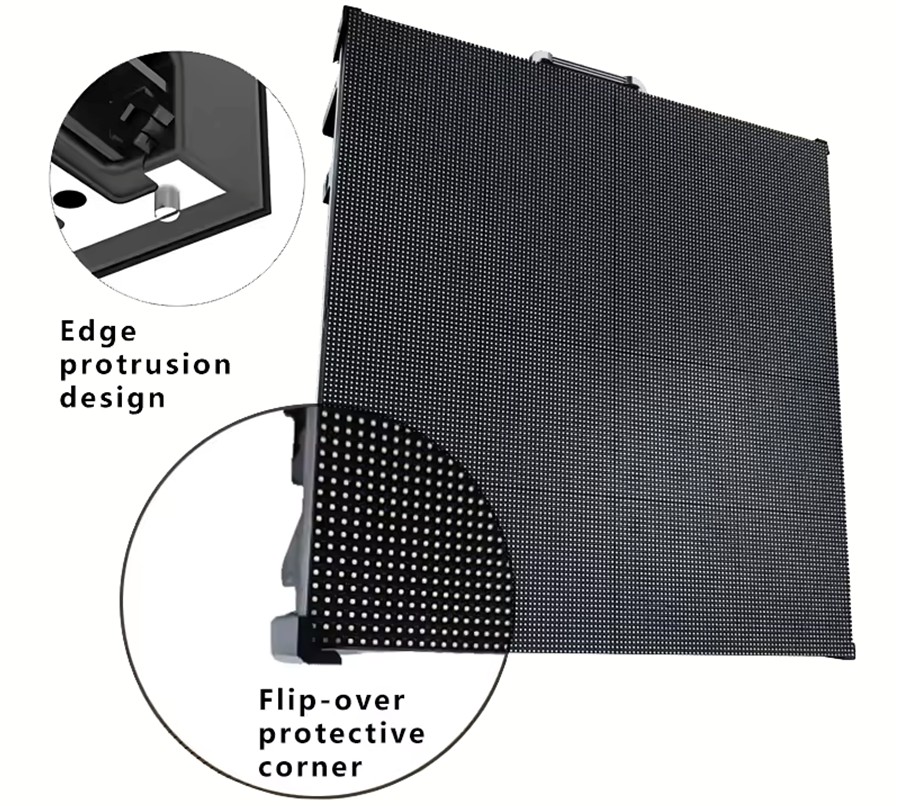

LED panels have 4 corner protection devices that not only ensure that the LED beads are not damaged during transportation and disassembly, but also prevent the corners of the LED cabinet from colliding.
When assembling LED screens, the device can be rotated to its normal state and there will be no gap between LED panels.

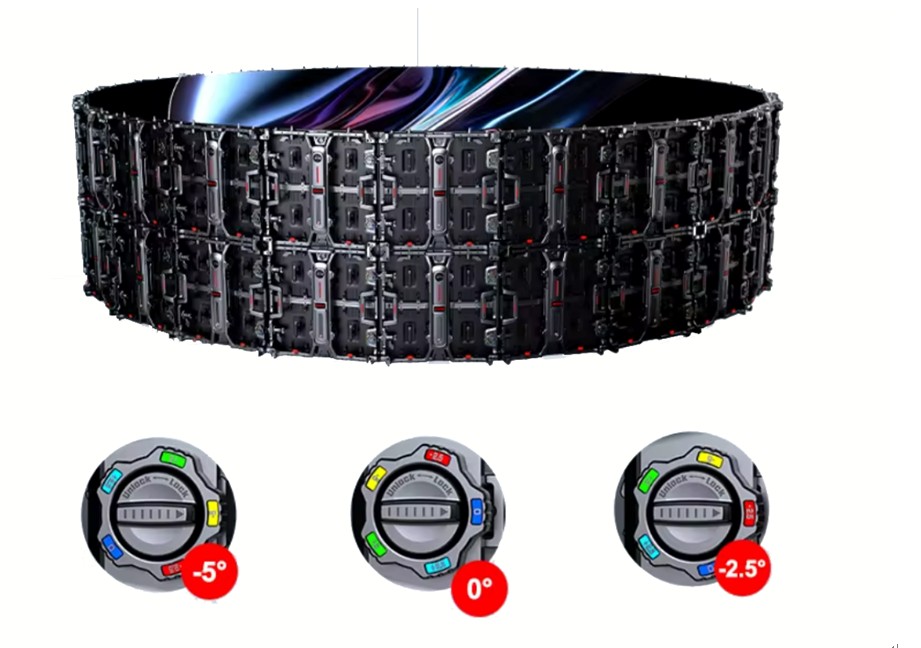

Rental LED video panel can make curved LED display, both inner and outer arc are supported,and 72pcs LED panels can make a circle.
Various Installation and splicing make your stage and event
